Pneumatic 18-20 liter drum capseal clamp

What is a pneumatic drum seal clamp?

In industrial paint manufacturing plants, the workload is very large, which requires all stages of the production line to be optimized in terms of capacity and efficiency, including sealing the paint drum.

The production of pneumatic drum seal clamps is a unique improvement that not only helps to save labor but also helps to increase labor efficiency and productivity many times over. Currently, the pneumatic drum seal clamp product is produced by Trieu Vu for the basic 18-20 liter paint drum, which is suitable for the majority of domestic paint manufacturers.

The Pneumatic 18-20 liter drum capseal clamp TVKN 06 has been upgraded from manual to semi-automatic, operated entirely by compressed air, reducing labor effort. In addition, with a modern design, powerful working capacity, and extremely simple and easy to use, this industrial product has been and is increasing labor productivity for large units such as: CTY TNHH KCC, SUNDAY PAINT, SƠN BẠCH TUYẾT, CTY QUỐC TRUNG, CTY RIVERBANK, … and some other small units.





Function

The Pneumatic 18-20 liter drum capseal clamp TVKN 06 is equipped with a pneumatic pressure system, specifically used to seal the lids of tin paint drums with a capacity of 18 to 20 liters. This helps to increase security during transportation, and also helps to prevent natural elements such as moisture and air from affecting the quality of the solution inside the container.

Highlighted features

• Powerful working capacity

With a powerful working capacity, the TVKN 06 Pneumatic 18-20 liter drum capseal clamp supports pneumatic pressure from 4 MPA and above (only use in the range of 4 – 6 MPA, this is the parameter that helps the machine to operate best). The work of sealing the lid will become easier than ever, without having to spend too much effort like the previous mechanical products.

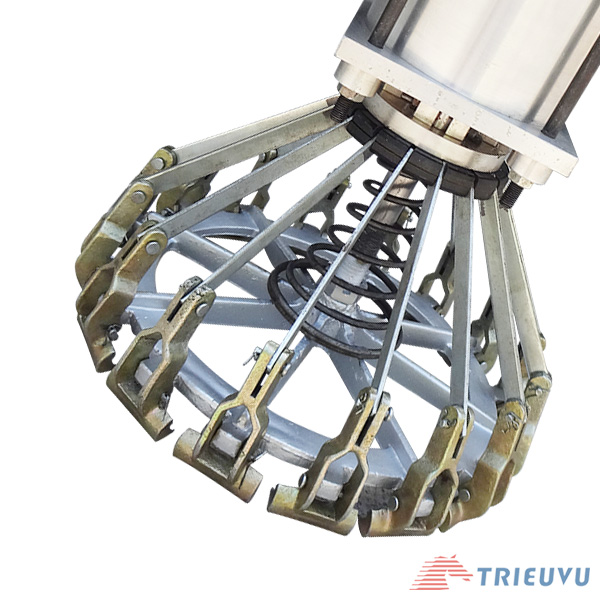

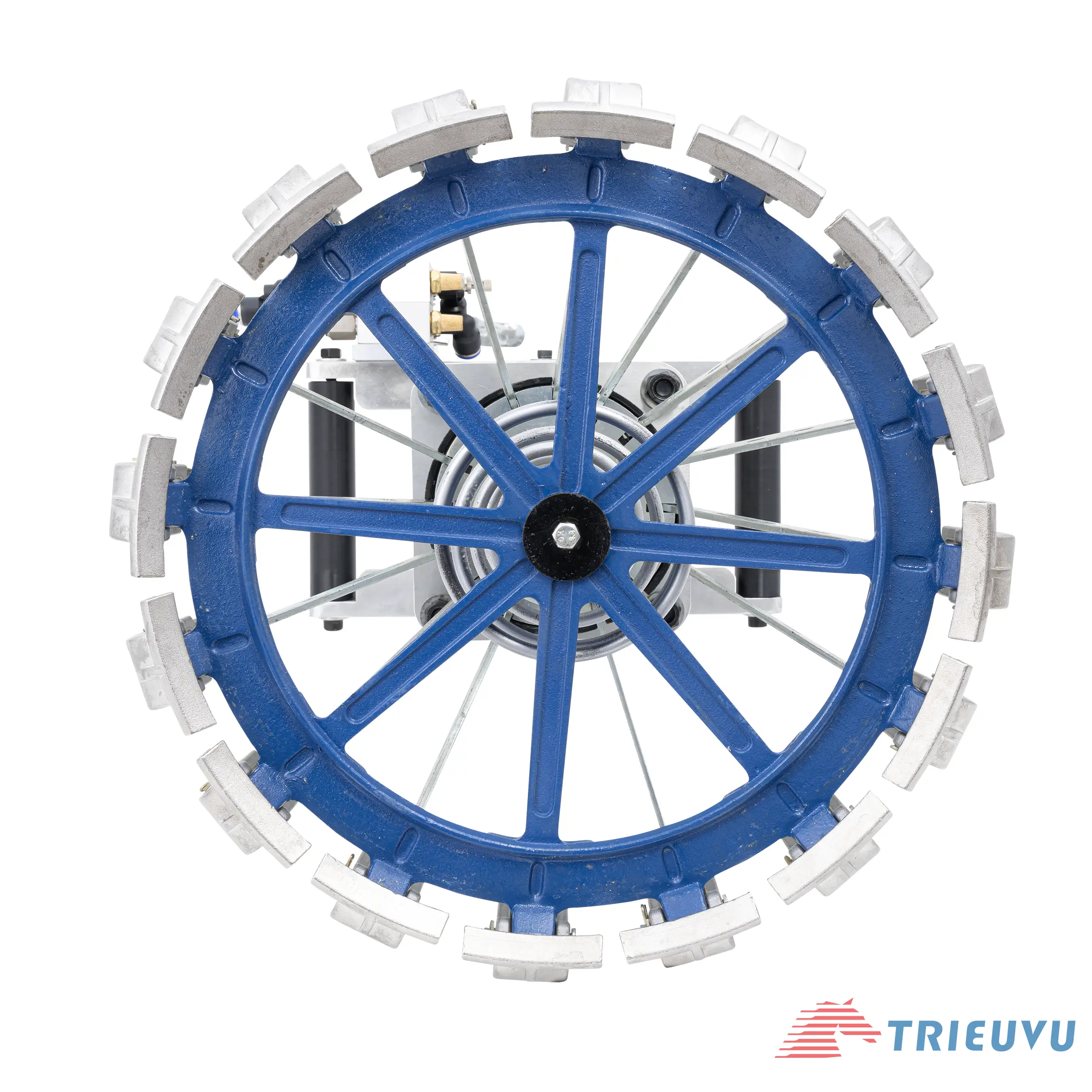

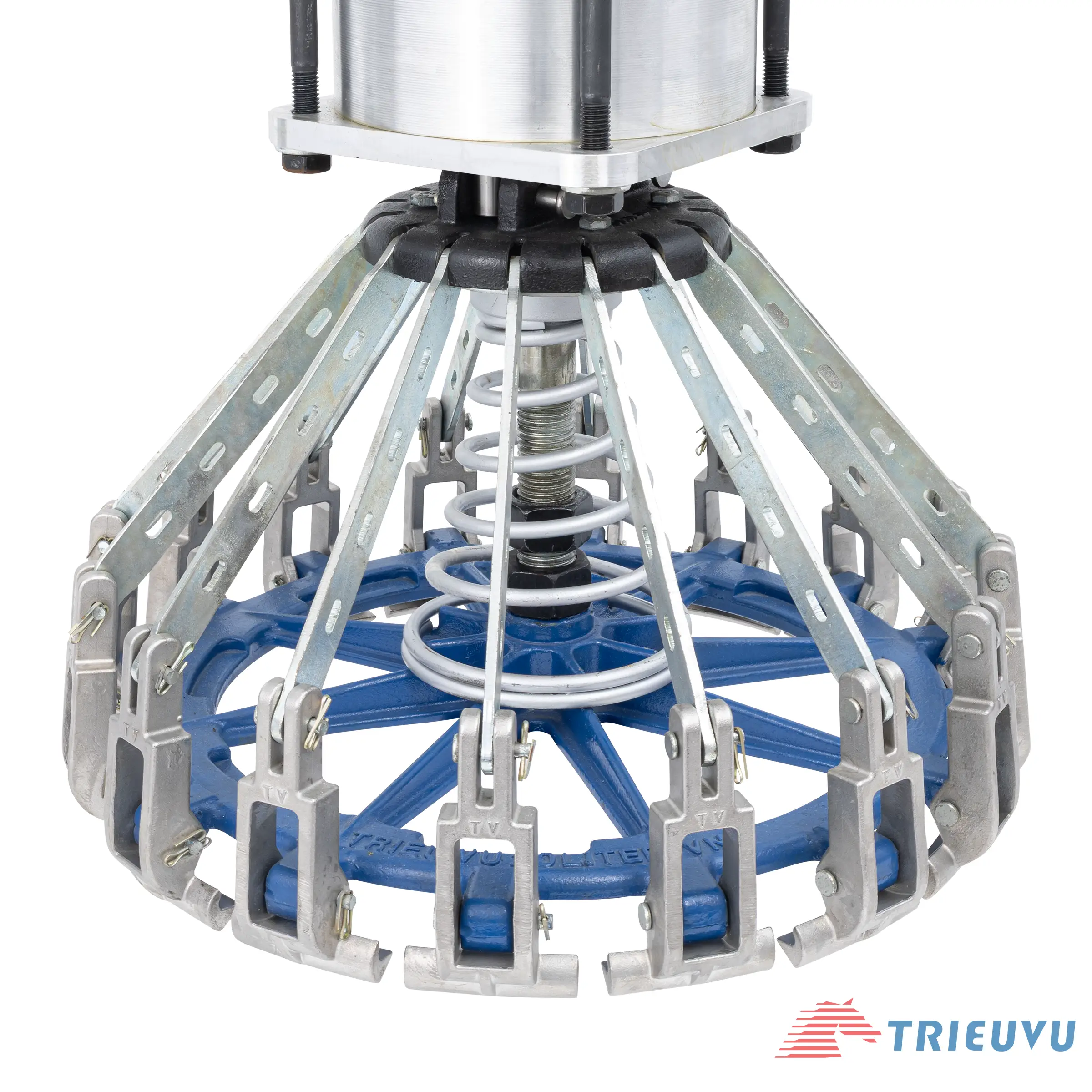

In addition, with 16 clamping jaws, evenly arranged around the diameter of the device, the lid edge will be firmly attached to the edge of the drum, preventing paint, chemicals, etc. from leaking.

• Compact design

With a total height of only 600mm and a weight of 15kg, this device has a relatively small and compact design compared to other devices, convenient for a variety of working spaces as well as storage when not in use.

• Attractive price

This pneumatic lid clamp set is produced by the hands of Triệu Vũ, with the main raw materials mainly taken from Vietnam, so the product price is quite competitive compared to imported products.

In addition, thanks to being manufactured by Vietnamese people, if there is damage to small components, customers can easily replace them. However, don’t worry too much, because this product is manufactured quite carefully and with a long warranty policy that our company offers you.

• Durable and easy to use

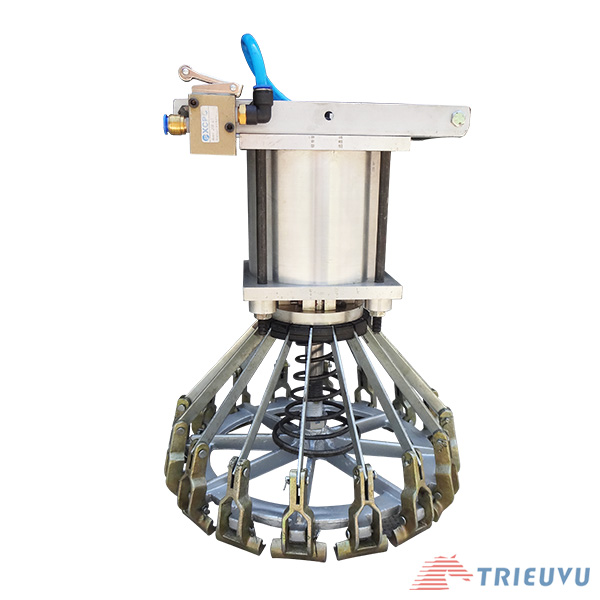

As you can see, the entire product is made of solid steel bars and steel sheets, which have undergone a meticulous heat treatment and milling process to create each specialized block, thus creating a product that is both durable over time and has a rather delicate appearance.

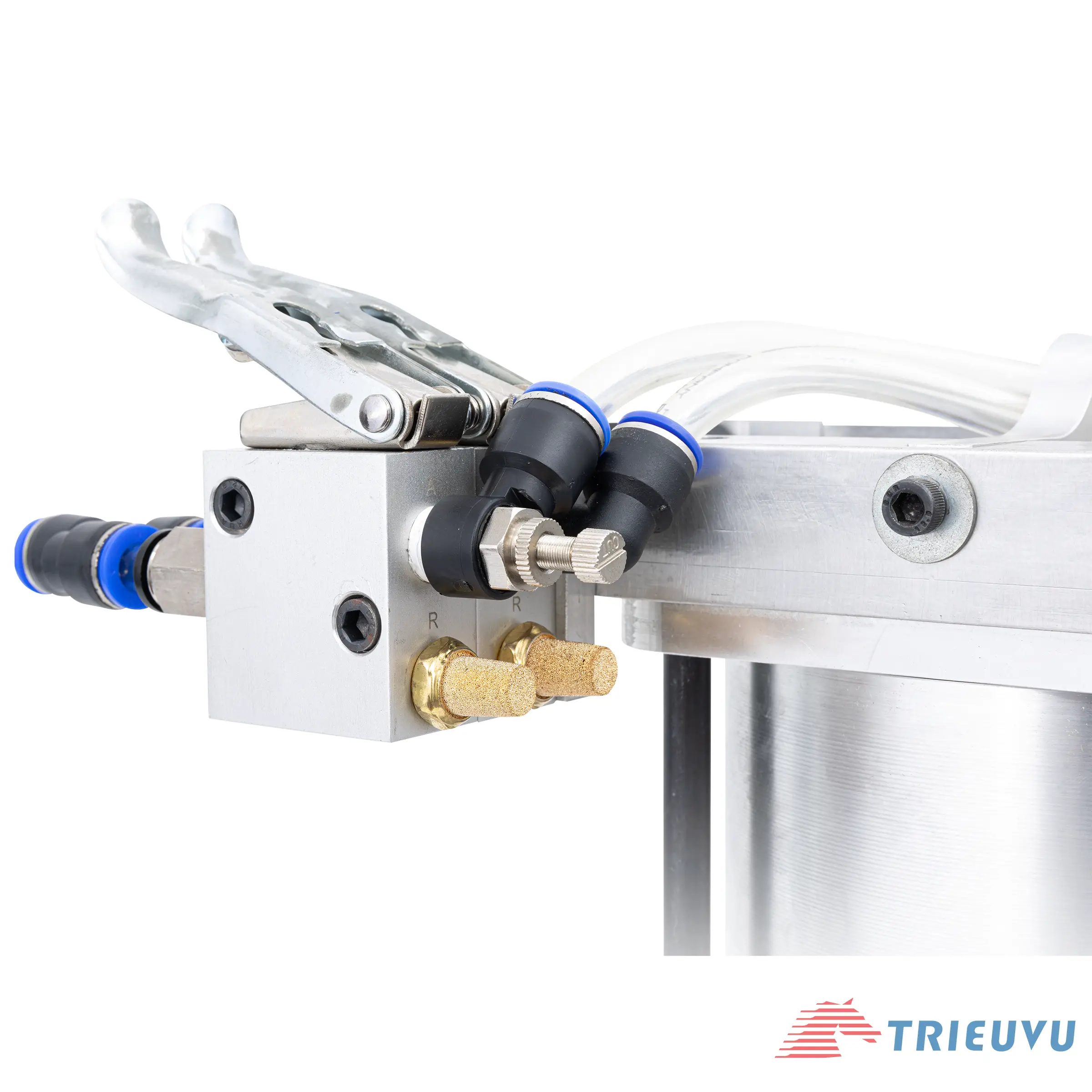

Moreover, important details such as air valves, rat tails, or hoses are all used by Triệu Vũ using high-quality products from Korea and Taiwan.

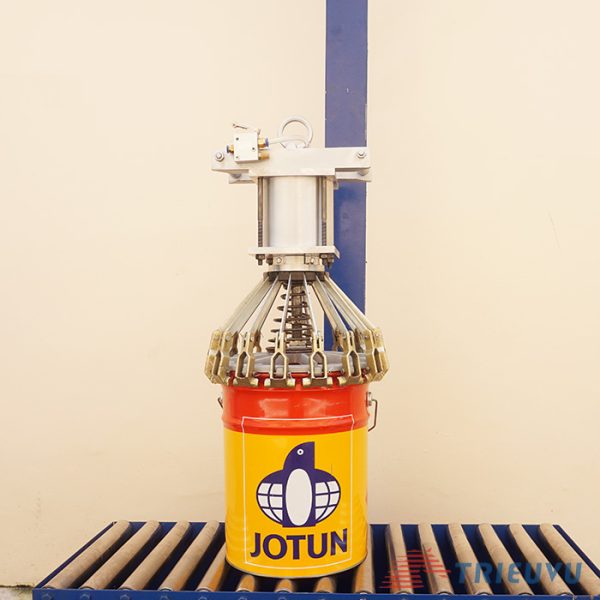

The way to use this device is also very simple, all you need to do is place it on the paint drum and “press”, everything else will be handled by the pneumatic system and clamping jaws.



Technical specifications:

• Function: Sealing equipment
• Product code: TVKN 06
• Material: Steel alloy
• Height: 600 mm
• Weight: 15 kg
• Diameter: 35 mm
• Working pressure: 4 – 6 MPA
• Tooth system: 16 pieces
• Origin: Vietnam
• Manufacturer: TRIEU VU TECHNICAL EQUIPMENT CO,. LTD.



Where to buy pneumatic drum seal clamps for 18-20 liters of paint?

Trieu Vu Technical Equipment Co.,Ltd is the leading supplier of high-quality and reputable pneumatic drum seal clamps in Vietnam with outstanding advantages:

• Attentive advice to choose the right product.
• 100% genuine product, with complete CO/CQ documents.
• Easy to use: pneumatic operation, helps to increase productivity.
• Durable steel material.
• Moderate weight and small size for easy use and storage.
• Most competitive prices nationwide.
• Experienced staff.
